Type 33-005 / 33-009
CIP/SIP quick connect coupling for fermentation processes, process air sampling and filling of inoculation flasks
Features Series 33-005/33-009
Types：
33-005, 33-009
Nominal bore：
5 mm and 9 mm
Media：
process air, steam
Working pressure：
up to 6 bar / 87 psi
Materials：
stainless steel 1.4404
Special features / Options：

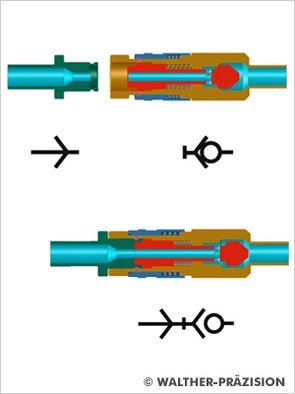

Easy to handle due to automatic lock (one hand operation). The series 33 can be supplied either with a self sealing adaptor (sealing on both sides) or with a through type adaptor (sealing on one side).
Applications：
This series has been successfully utilised during insulin production for fermentation processes, process air sampling and filling of inoculation flasks.
Type 15-012
CIP/SIP quick connect coupling for taking samples during the production of cosmetics and for the supply with demineralised water or steam up to 130 °C / 266 °F.
Features Type 15-012
Type：
15-012
Nominal bore：
12 mm
Media：
demineralised water, steam up to 130 °C
Working pressure：
up to 8,5 bar
Materials：
stainless steel 1.4404
Special features / Options：
Through type coupling with valve tappet and dust cap. Very easy to clean due to a pawl lock. Easy to handle due to automatic lock (one hand operation).
Applications：
For taking samples during the production of cosmetics and for the supply with demineralised water or steam up to 130 °C.
Type 01-018
CIP/SIP quick connect coupling for ultrapure water
Features Type 01-018
Type：
01-018
Nominal bore：
18 mm
Media：
ultrapure water
Working pressure：
up to 6 bar
Materials：
stainless steel 1.4404
Special features / Options：
The shaped-to-fit housing seal is located on the through type adaptor to enable a gap-free connection and to be able to replace this wear part quickly and easily.
Applications：
In the pharmaceutical industry for ultrapure water
Type 40-030
Sterilisable clean-break coupling for the transport of fluids, e. g. in hose stations
Features Type 40-030
Type：
40-030
Nominal bore：
30 mm
Media：
fluids, gases
Working pressure：
up to 16 bar
Materials：
stainless steel 1.4404 / 1.4571 or similar
Special features / Options：
springs are outside the media flow. Few dead spots as well as CIP compatible (Clean-In-Place) and SIP compatible (Sterilisation-In-Place)
Type 15-050
SIP-suitable clean-break coupling for loading of fluids and paste-like media
Features Type 15-050
Type：
15-050
Nominal bore：
50 mm
Media：
fluid and paste-like media
Working pressure：
up to 7 bar
Materials：
stainless steel 1.4404 / 1.4305
Special features / Options：

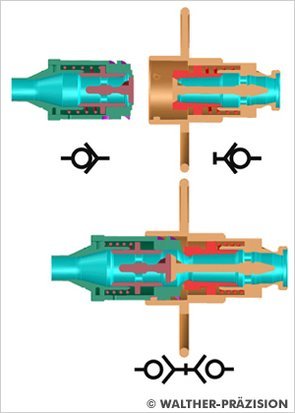

Clean break coupling with automatic lock and separate locking and valve opening process
Applications：
Loading of fluids and paste-like media
