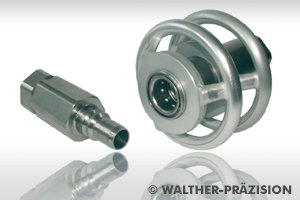

Quick Couplings with PTFE Seals
Features Series TE
Types：
TE-009, TE-012, TE-019, TE-032, TE-050
Nominal bores：
9, 12, 19, 32, 50 mm
Media：
aggressive fluids
Working pressure：
dependent on nominal bores and material up to 100 bar (1,450 psi)
Materials：
stainless steel 1.4404, passivated brass, chemically nickel-plated steel
Special features / Options：
all seals made from PTFE, suitable for low temperatures down to -50 °C / -58 °F and suitable for high temperatures up to 250 °C / 482 °F, equipped with ring grips for easier operation as of size 32.

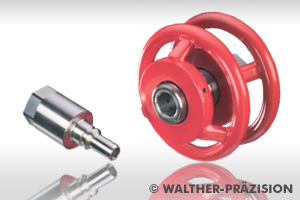

Features TE-010-Z03 / TE-016-Z02
Nominal bores：
10, 16 mm
Media：
superheated steam up to 250 °C / 482 °F
Working pressure：
up to 40 bar / 580 psi
Materials：
stainless steel 1.4404
Special features / Options：
suitable for low temperatures down to -50 °C / -58 °F and for high temperatures up to 250 °C / 482 °F, ring grips colour marked (red) to follow DIN 2403, customer sealing possible with O-ring (not included)
