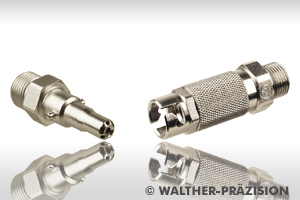

Type 03-005
Plug connection for paint and lacquer on synthetic resin, nitrocellulose and water soluble base
Features Type 03-005
Type：
03-005
Nominal bore：
5 mm
Working pressure：
max. stat. 140 bar / 2,030 psi (as high pressure version up to max. stat. 200 bar (2,900 psi)
Media：
paints, lacquer and solvents on the base of synthetic resin nitrocellulose and water
Materials：
steel and brass, chem. nickel plated
optional:
stainless steel 1.4404 / 1.4571 or simila
Special features / Options：
self sealing coupling with self-locking ball valve and bayonet locking
